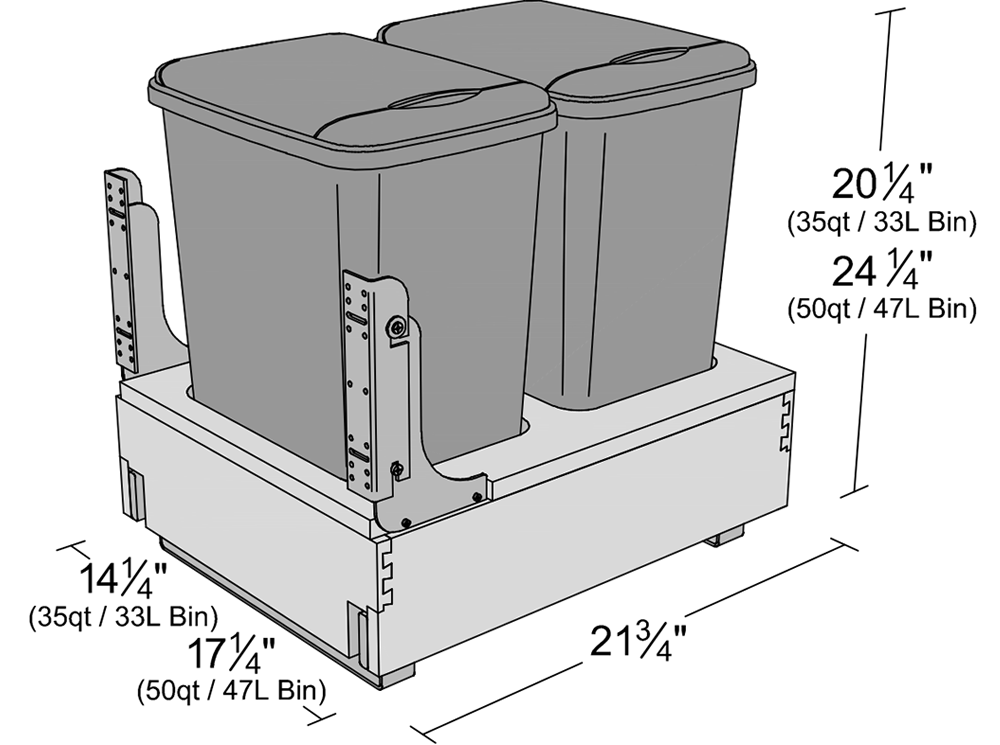

D112 S/L
Trash / Recycling Drawer Box
This is our standard recycling / trash container dovetail drawer box. The dovetail box portion comes in one standard height; width and length (see drawing). It comes with either a D12S 35 quart (33 liters) or D12L 50 quart (47 liters) trash/recycling containers. The Dovetail box width depends on the size of contain. The overall height also changes depending on the container size. The depth remains a standard 21 3/4” for both size containers. Each container set comes with a green lid for “recycle” and a white lid for “garbage”.
Note: This drawing measurement shows this drawer box with a 3/8” thick drawer bottom that is recessed 1/2”. This drawing also shows the 50 quart width.
Note: This drawing measurement shows this drawer box with a 3/8” thick drawer bottom that is recessed 1/2”. This drawing also shows the 50 quart width.
