Drawer Box Options

Explore technical drawings and specifications for Elias Woodwork drawer box options. Designed to support precision manufacturing and installation, these resources provide cabinet professionals with the information needed for custom cabinetry and storage solutions.

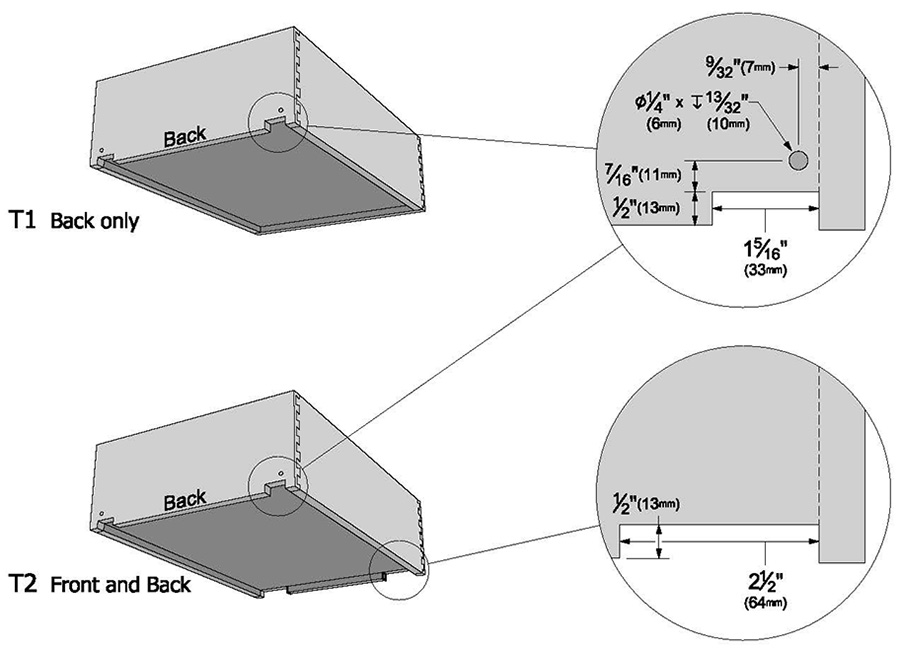

Drawer Box Notching Option

T1 & T2 Front and back drawer box notching options



Drawer Side Material



T63

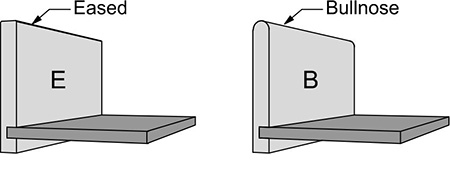

Drawer Side Material Top Edge Option



E & B Drawer Side Top Edge Option

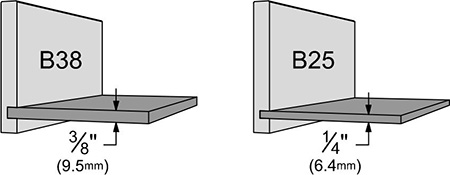

Bottom Panel Thickness Options



B38 & B25

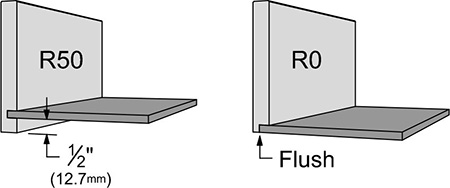

Bottom Panel Recess Options



R50 & R0 Drawer Bottom Panel Recess Options

Technical Drawings

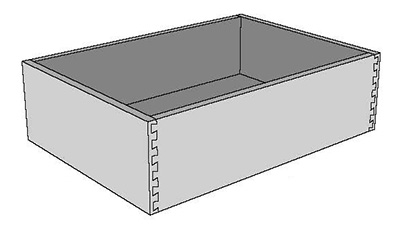

Image of a drawing of the D104 dovetail drawer box Drawer Boxes
Drawing of dovetail scalloped edge custom drawer box example Pullouts
Drawing of a drawer box cutlery insert Insert Options
Drawing of dovetail drawer box showing notching option for slides Drawer Box Options
